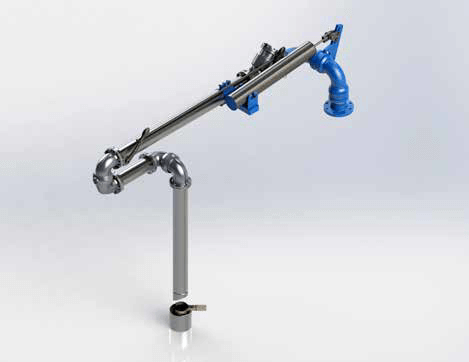

Top Loading Arm FL150 is articulated, self-supported pipeline used to transfer fluids from depots to road or railway tankers through the manhole on the top of the tanker. Variable reach type allows a wider loading coverage.

Components description (standard version)

• Right-hand layout, bottom inlet, ANSI 150 inlet flange
• Double swivel style F-50 in 42CrMo4 carbon steel + FKM seals
• Compression spring balancing unit
• Loading valve in aluminum alloy, stay-open type
• Loading valve remote control lever
• Main pipe in aluminum alloy
• Intermediate swivel style F-40 in aluminum alloy+ FKM
• Intermediate pipe in aluminum alloy
• Drop pipe swivel style F-40 in aluminum alloy + FKM seals
• Drop pipe in aluminum alloy
• Drip bucket in aluminum alloy
