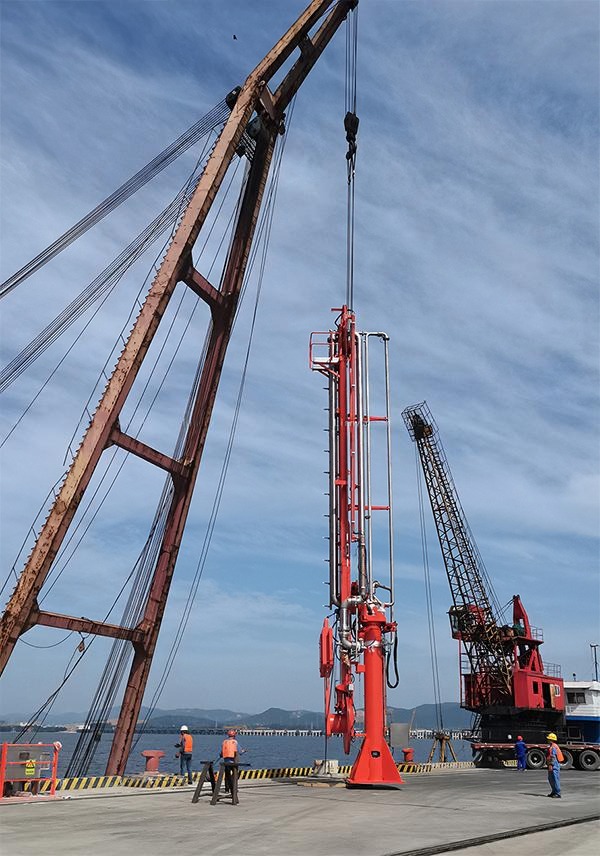

This manually operated marine loading arm is developed for the loading and unloading of liquids and gasses between ship and shore
Operating method: manually operated
Supporting structure: independent support, hybrid support, self support, single or double arm
Specifications
Nominal diameter: DN100～DN250 (4″～10″)
Design pressure: -0.06MPa～4.0MPa
Design temperature: -196℃～+230℃
Pipeline material: carbon steel/stainless steel/PTFE lined steel
Features
- Simple to use;
- Easy replacement of seals;
- Light weight;
- Low wind loads;
- Independent supporting structure;
- Constant diameter of pipeline;
- Long arm span;
- Configured with locking mechanism, allowing the loading arm to be in a locked condition when it is not working;
- Cable & wheel counterweight balancing system enables the loading arm to be balanced in any motion within the working envelope while lowering the height of the center of gravity thereby improving the stability;
Optional Accessories
- Vacuum breaker
- Draining system
- Insulating flange
- Adjustable support leg
- Emergency release coupling (ERC)
- Manual quick connect-disconnect coupler (QCDC)
- Position monitoring system
FILLOAD has focused on designing and producing fluid loading arms for the transfer of liquids and gases since its inception in 2000. As an experienced loading arm manufacturer, we believe that safety and efficiency are the two most important criteria which ultimately matters to our customers. All of our liquid loading systems and fluid handling equipment are manufactured to international standards, and tailored to different application needs. Regardless of marine, road and railway liquid transfer systems, our engineers always strive for continuous innovation, development and improvement for the satisfaction of our customers in chemical, petrochemical, pharmaceutical, beverage, and other industries.
